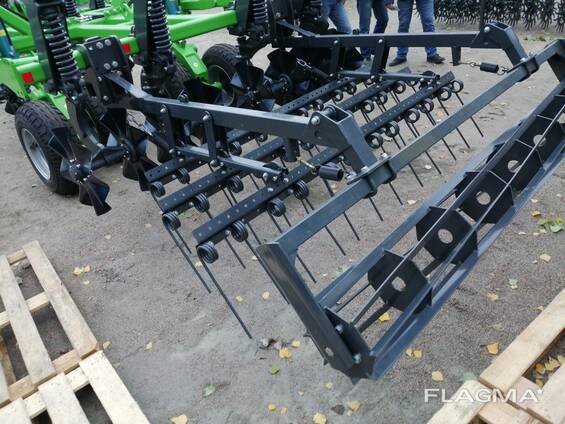

VERTI-TILL TURBO CULTIVATOR GREEN WAVE 2.6 M

In the presence of units with different working widths: 2.6 m, 3.9 m, 5.2 m, 6.5 m, 7.8 m, 9.1 m, 10.4 m, 11.7 m, 18.2 m.

field work with a lot of crop residues;
crushing of a solid surface soil layer;
application and mixing of herbicides, compost and fertilizers;
preparation of the field, seed bed with traditional, preserving and zero technologies.

Type ... trailed
Tractor hitch ... pendulum
Average speed, km / h ... 15
Working width, m ... 2.6
Working length, m ... 7.9
Length during transportation, m ... 7.9
Height during transportation, m ... 1.7
Width during transportation, m ... 2.5
Total weight, t ... 2.98
Number of spring blocks, pcs … 8
Number of turbo disks, pcs ... 16
The distance between the turbo disks, m ... 0.162
Depth of processing, mm ... 0-180
Depth adjustment ... set of clips 50/30/19/10 / 7mm on the rods of hydraulic cylinders
Tire Sizes:
The support wheels of the wing frames ... 10.0 / 75-15.3 (14PR)
The support wheels of the frames of the central frame ... 19.0 / 45-17 (18PR)
Tire pressure, bar ... 4-5
Hydraulic system pressure, bar ... 180
Minimum tractor power, hp ... 120
When deep processing is recommended, hp ... 160
The number of staff, people ... 1
