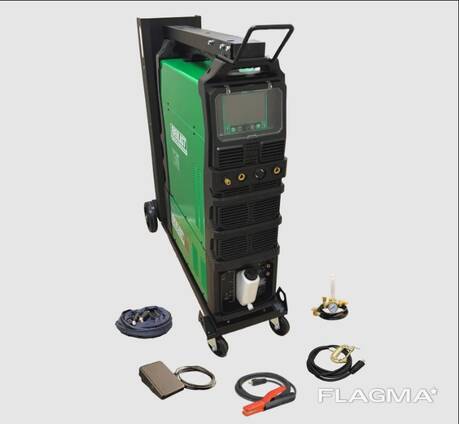

Everlast Typhoon 500 Welder TIG Stick IGBT Inverter 500A 240/480V

The Everlast Typhoon 500 is a high-output AC/DC TIG and stick welder built for professional commercial use. It offers up to 400A TIG output on 240V single-phase power and up to 500A TIG output on 480V three-phase power, along with a 60% duty cycle at maximum output. Its digital IGBT inverter design uses a large HD color screen with single-page parameter access for easier setup and adjustment. The machine supports advanced AC and DC waveform control, pulse functions, and both air-cooled and water-cooled torch setups. A bundled cooler, cart, pedal, torches, and starter consumables kit make this a comprehensive welding package.

Advanced Digital IGBT Inverter Technology.
HD (720) LCD color screen with easy to read contrast.
Intuitive navigation and layout of settings.
Power Factor Correction.
240V 1 phase and 480V 3 Phase operation.
F. A. C. C. T. (Fan and Cooler Control Technology)
5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
Split AC Wave form control technology. Select wave form shape of individual half-waves in AC.
Independent Amplitude Control over EN and EP Amps in AC.
DC Wave form shaping for more control.
DC Pulse up to 999.9 Hz. AC Pulse up to 400 Hz.
AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 500A or greater of standard machines.
AC frequency up to 400Hz.
True low amp starts measured at 5A DC and 10A AC.
Single page layout without hidden menus to access.
Almost all settings visible at a glance.
Capacitive HV/HF arc starting: No Points to adjust.
Selectable to start Electrode Positive or Electrode Negative.
Selectable for Tungsten size for quicker starts.
Advanced PowerSet menu makes setup easy and quick.
60% Duty Cycle TIG and Stick at max output.
400/500A TIG/ 315/400A Stick maximum output.
30 program memory with lock function to prevent tampering.
